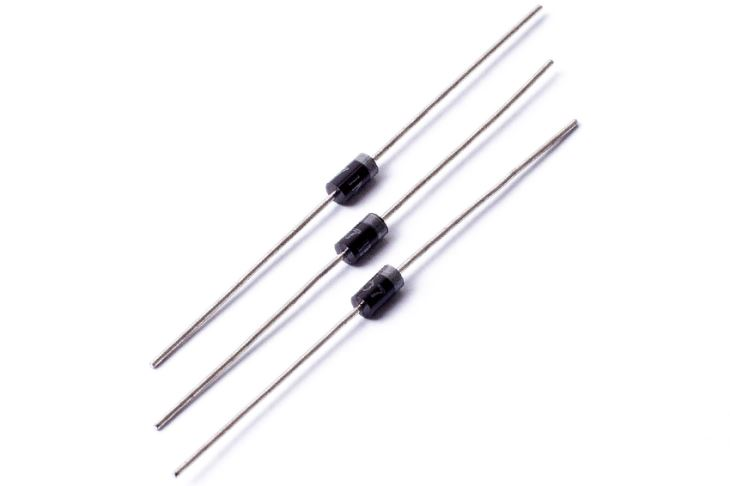

Rectifier Diode Circuit Working Principle
How diodes work: The working principle of a rectifier diode circuit is relatively straightforward. The purpose of a diode is to convert alternating current (AC) into direct current (DC) by allowing current to flow in only one direction while blocking it in the opposite direction. This process plays an essential role in various electronic and electrical applications that require a stable DC voltage, including power supplies, battery chargers, and numerous other devices. What does a rectifier do?
Here's how a rectifier diode circuit works:
AC Input: The rectifier diode circuit starts with an AC voltage source, which typically provides a voltage that alternates between positive and negative values in a sinusoidal manner.
Diode Configuration: A rectifier diode circuit uses one or more diodes. Diodes are directional, typically a single diode in a half-wave rectifier. It is linked to the load.
Half-Wave Rectification: The diode conducts during the positive half-cycle of AC, allowing current from the anode to the cathode, and blocks the negative half-cycle when reverse-biased.
Output: The output across the load is a pulsing DC voltage as a result of this operation. It solely includes the positive regions of the input AC waveform. The magnitude of the DC voltage is determined by the voltage drop across the semiconductor diode and the amplitude of the AC input.
Filtering (Optional): To stabilize the DC voltage, add a filter circuit, often a capacitor, across the load. This capacitor stores charge when the diode conducts, reducing ripples in the DC output.
Full-Wave Rectification (Bridge Rectifier): For more efficient and complete rectification, a bridge diode rectifier circuit is often used. It consists of four diodes arranged in a bridge configuration. This setup rectifies both the positive and negative half-cycles of the AC input, resulting in a nearly constant DC output.

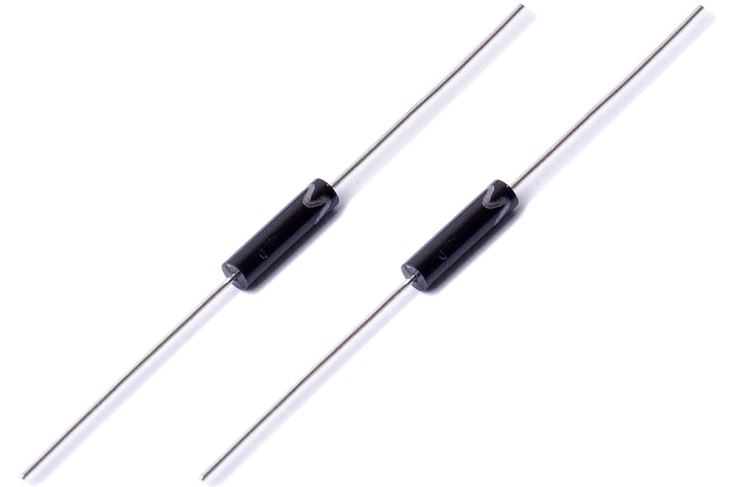

Applications of Rectifier Diodes Rectifier diodes find application in various electronic and electrical systems where the conversion of alternating current (AC) to direct current (DC) is necessary. What do diodes do? Here are some common rectifier diode applications:
Power Supplies Rectifier diodes are a fundamental component in power supplies for electronic devices, ensuring a steady DC voltage output from an AC source. This includes power adapters for laptops, phones, and other electronic gadgets.
Battery Chargers Rectifier diodes find use in battery charging circuits, such as those in smartphones, laptops, and automotive battery chargers, converting AC to DC for battery charging from the wall outlet.
Rectifier Bridges Rectifier diode bridges, consisting of four diodes arranged in a bridge configuration, commonly feature in power diode rectification, making them a key component in various electronic devices and power supplies.
HVAC Systems Heating, ventilation, and air conditioning systems often use rectifier diodes for controlling the rectification of AC power in control circuitry.
Rectifiers in Transformers Rectifier diodes are used in transformers, such as those in power distribution systems, to convert AC voltage into DC voltage.
Cathode Ray Tube (CRT) Displays CRT monitors and televisions use diodes to convert AC voltage to the required DC voltage for the electron gun and display operation.
Variable Frequency Drives (VFDs) In VFDs, diodes are used for motor control and speed regulation. Rectifier diodes assist in converting AC to DC before converting it back to variable-frequency AC for motor control.
Power Supplies Diode rectifiers are fundamental components in power supply units, converting the incoming AC voltage from the electrical grid into a stable DC voltage. This is crucial for powering electronic devices and systems that require a consistent and unidirectional power source.
Battery Charging In battery charging systems, diode rectifiers are employed to convert AC power to DC, which is then used to charge rechargeable batteries. This application is common in devices ranging from small electronic gadgets to electric vehicles.

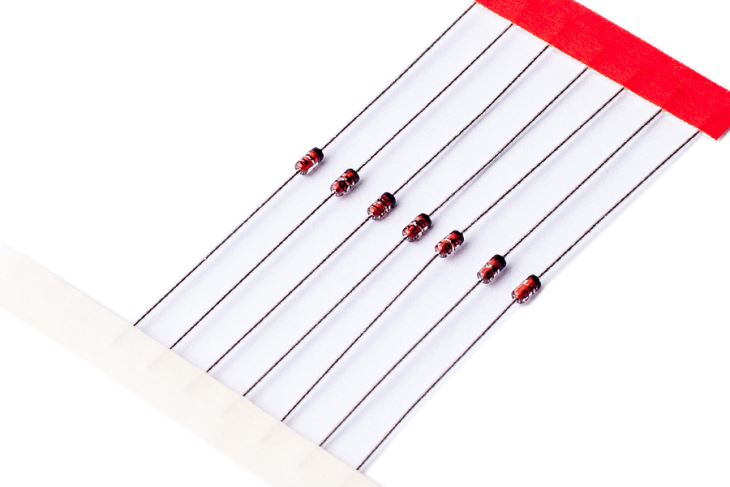

Electronics Diode rectifiers are utilized in electronic circuits for various purposes, including signal demodulation, where they convert amplitude-modulated (AM) signals back into their original form by rectifying the carrier wave.
Audio Systems Rectifiers are used in audio systems to convert the AC signal from a microphone or audio input source into a pulsating DC signal. This rectified signal is then smoothed using capacitors to remove the pulsations, providing a cleaner DC voltage for amplification.
Telecommunications Diode rectifiers play a role in telecommunications systems, where they are used in rectifying AC signals to provide the necessary DC voltage for powering components such as transmitters and receivers.
Industrial Applications In industrial settings, diode rectifiers are employed in various equipment and machinery where a stable DC power source is required for control circuits and electronic components.
Photovoltaic Systems In solar power systems, diode rectifiers are used to convert the DC power generated by solar panels into a form suitable for use or storage. This ensures efficient utilization of solar energy in both residential and commercial applications.
LED Lighting Diode rectifiers are used in LED lighting systems to convert AC power to the DC power required to illuminate the LEDs. This is essential for ensuring the longevity and proper functioning of LED lights.
Automotive Systems In automotive electronics, diode rectifiers are employed in alternators to convert the AC output from the alternator into DC power for charging the vehicle's battery and powering various electrical systems.
How to Choose a Rectifier Diode
Rectifier diodes are generally planar silicon diodes, used in various power supply rectifier circuits. When selecting a rectifier diode, the main considerations should be its maximum rectification current, maximum reverse operating voltage, cut-off frequency, reverse recovery time, and other parameters.
In the rectifier diodes used in ordinary series regulated power supply circuits, the requirements for cut-off frequency and reverse recovery time are not high; as long as the rectifier diode meets the circuit requirements for maximum rectification current and maximum reverse operating voltage, it can be selected. For example, the 1N series, 2CZ series, RLR series, etc.

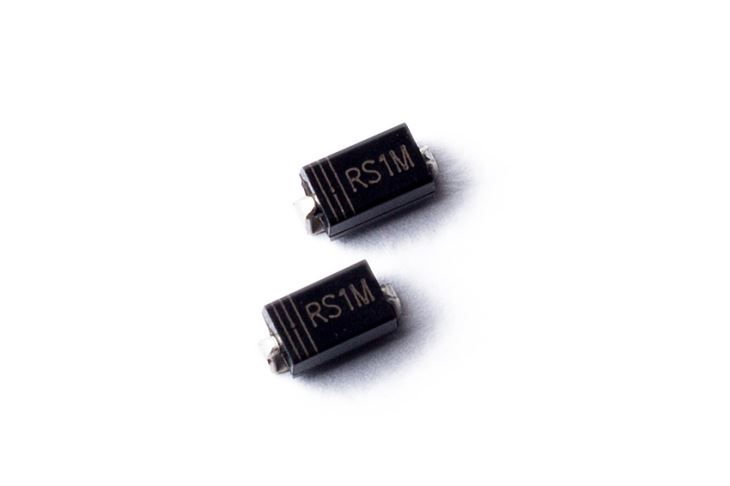

For rectifier diodes used in the rectifier circuits and pulse rectifier circuits of switching regulators, those with a higher operating frequency and shorter reverse recovery time (for example, RU series, EU series, V series, 1SR series, etc.) or fast recovery diodes should be selected. There is also the Schottky rectifier diode.
Replacement of Rectifier Diode
After a rectifier diode is damaged, it can be replaced with a rectifier diode of the same model or another model with the same parameters.
Generally, a rectifier diode with a high withstand voltage (reverse voltage) can replace one with a low withstand voltage, while a rectifier diode with a low withstand voltage cannot replace one with a high withstand voltage. A diode with a high rectified current value can replace one with a low rectified current value, while a diode with a low rectified current value cannot replace one with a high rectified current value.
Damage Causes of Rectifier Diode
Lightning protection and overvoltage protection measures are ineffective. The rectifying device is not equipped with lightning protection and overvoltage protection devices. Even if such devices are installed, their performance is unreliable, leading to damage of the rectifier tube due to lightning strikes or overvoltage.
The operating conditions are poor. For indirectly driven generator sets, incorrect calculation of the speed ratio or a pulley diameter ratio that does not meet the speed ratio requirements causes the generator to operate at high speed for a long time. Consequently, the rectifier tube also operates at high voltage for an extended period, accelerating its aging and leading to premature damage.
Poor operation management. The operator on duty is irresponsible and fails to monitor changes in external load (especially between midnight and 6:00 a.m. the next day). Additionally, when an external load rejection fault occurs, the operator does not perform corresponding operations and treatments in a timely manner, resulting in overvoltage that causes breakdown and damage to the rectifier.
Equipment installation or manufacturing quality is substandard. Due to long-term operation of the generator set with significant vibration, the rectifier tube is subject to interference from this external vibrational force. Meanwhile, the fluctuating rotational speed of the generator set causes the working voltage borne by the rectifier tube to vary, greatly accelerating its aging and damage.
The specifications and models of rectifier tubes are inconsistent. When replacing a rectifier tube, using a new tube with mismatched working parameters or incorrect wiring can lead to breakdown and damage of the rectifier tube.
The safety margin of the rectifier tube is too small. The overvoltage and overcurrent safety margins of the rectifier tube are insufficient, leaving it unable to withstand the peak values of overvoltage or overcurrent transient processes in the generator's excitation circuit.

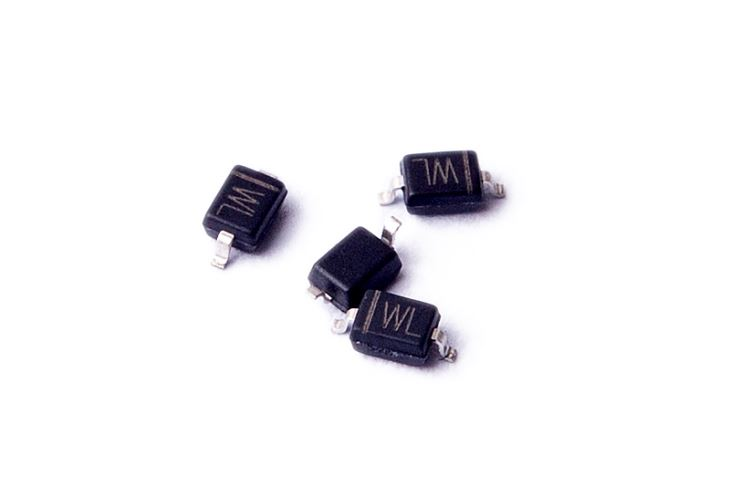

Common Parameters of Rectifier Diode
Maximum average rectified current (IF): Refers to the maximum forward average current a diode can sustain during long-term operation. This current is determined by the junction area of the PN junction and heat dissipation conditions. During use, it should be noted that the average current through the diode must not exceed this value, and proper heat dissipation conditions must be ensured.
Maximum reverse working voltage (VR): Refers to the maximum reverse voltage allowed across the diode. Exceeding this value causes a sharp increase in reverse current (IR), destroying the diode's unidirectional conductivity and leading to reverse breakdown. Generally, half of the reverse breakdown voltage (VB) is taken as VR.
Maximum reverse current (IR): Refers to the reverse current allowed to flow through the diode under the maximum reverse working voltage. This parameter reflects the diode's unidirectional conductivity; thus, a smaller current value indicates better diode quality.
Breakdown voltage (VB): Refers to the voltage at the sharp inflection point of the diode's reverse volt-ampere characteristic curve. For diodes with soft reverse characteristics, it refers to the voltage under a specified reverse leakage current condition.
Maximum operating frequency (FM): Refers to the highest frequency at which the diode can operate normally. It is mainly determined by the junction capacitance and diffusion capacitance of the PN junction. Exceeding FM will result in poor performance of the diode's unidirectional conductivity.
Reverse recovery time (TRR): Refers to the reverse recovery time under specified load, forward current, and maximum reverse transient voltage conditions.
Zero bias capacitance (Co): Refers to the sum of diffusion capacitance and junction capacitance when the voltage across the diode is zero. It should be noted that due to manufacturing process limitations, even diodes of the same type may have significant parameter variations. Parameters provided in manuals typically fall within a range, and corresponding parameters will change if test conditions alter.
FAQ
Q: What is the function of a rectifier diode?
A: A rectifier diode is a special type of diode that converts alternating current (AC) into direct current (DC). This is a crucial process because alternating current reverses direction periodically, while direct current flows consistently in a single direction, making it easier to control.
Q: What is the difference between a diode and a rectifier diode?
A: A diode is an electronic component that allows current to flow in only one direction. It is a two-terminal semiconductor device. A rectifier diode is a device used to convert AC voltage to DC voltage. A general diode is used as a switch, while a rectifier diode is used for conversion.
Q: Why can a diode be used as a rectifier?
A: Simply put, a diode allows current to flow in only one direction. This unique property enables it to function as a rectifier by converting alternating current to direct current.
Q: How does a rectifier diode convert AC to DC?
A: Methods for converting AC (Alternating Current) to DC (Direct Current) include full-wave rectification and half-wave rectification. In both cases, rectification is achieved by utilizing the diode's characteristic of allowing current to flow only in the positive direction.
Q: What is a rectifier, and why is it used?
A: A rectifier is an electrical device used to convert alternating current (AC) into direct current (DC) by allowing current to flow through the device in only one direction. Diodes act like one-way valves within the rectifier to maintain this unidirectional flow.
Q: Which rectifier is most commonly used, and why?
A: Full-wave bridge rectifiers are most widely used due to the low cost of their diodes, as well as their lightweight and high efficiency. Important applications of full-wave bridge rectifiers include mobile phones, laptops, and charger circuits, as well as uninterruptible power supply (UPS) circuits for converting AC to DC.
Q: What is a rectifier diode also known as?
A: A diode used as a rectifier can be part of a half-wave rectifier or a full-wave rectifier. The primary application of a p-n junction diode is in rectification circuits, which are used to convert AC signals to DC in power supplies. A diode rectifier produces an alternating voltage that pulsates over time.
Q: How is a diode connected in a rectifier?
A: A full-wave rectifier is a circuit that converts the entire alternating input voltage into direct voltage. This is achieved using two junction diodes. The p-sides of the diodes are connected to the input, while the n-sides are connected together, and along with the center tap, form the output.
Q: Why use a rectifier instead of a transformer?
A: A half-wave rectifier can be used to convert AC input power into DC output power. When a high AC voltage is applied to the primary side of a step-down transformer, a low voltage is induced in the secondary coil. This voltage then passes through a diode connected in the secondary circuit.
Q: Can a rectifier convert DC to AC?
A: Inverters and rectifiers are electronic circuits that can change the type of electric current. An inverter converts DC to AC, while a rectifier converts AC to DC. They typically consist of switches, diodes, transistors, or other components that control current flow.
Q: Which rectifier requires one diode?
A: Half-wave rectifiers convert AC voltage to DC voltage. A half-wave rectifier circuit uses only one diode for this conversion. A half-wave rectifier is defined as a type of rectifier that allows only one half-cycle of an AC voltage waveform to pass through while blocking the other half-cycle.
Q: How to convert AC to DC without a rectifier?
A: When a conductor is rotated through a magnetic field, the voltage rises in one direction, falls to zero, and then repeats in the opposite direction, creating a sine wave. Essentially, an old DC generator converts AC to DC mechanically using a commutator.
Q: Can you convert AC to DC with one diode?
A: There are two primary modes of rectification: Half-wave rectification uses a single diode, allowing only one half of the AC wave to pass through while blocking the other half. This method is less efficient because half of the AC's potential remains unused.
Q: Can you use a rectifier diode in a DC circuit?
A: Yes. The advantage of using a full-bridge rectifier diode (such as the 4 M7 diode in your circuit) is that you can input DC directly to the AC-DC converter, and it should work properly.
Q: What causes a rectifier to fail?
A: For voltage to be generated, the battery needs a reliable ground connection. If the connection is poor and the voltage is unstable, this can cause the regulator rectifier to run hotter than normal. Issues like poor grounding, a loose or weak battery, and a worn battery connection can all lead to regulator rectifier failure.
Q: What are the advantages of a rectifier?
A: Rectifiers are widely used in power supplies, DC motor controllers, and many other electronic circuits. They provide an efficient, reliable, and cost-effective way to convert AC voltage to DC voltage. They can handle both AC and DC input voltages and rectify both positive and negative voltages.
Q: Is a battery charger a rectifier?
A: Rectifiers, also known as "battery chargers," are a common type of backup power system in telecom applications. The name "rectifier" comes from the fact that these units are powered by AC voltage and convert it to DC voltage for the output or "load."
Q: What is the difference between a rectifier and an inverter?
A: An inverter and a rectifier perform opposite functions in electronic circuits. Both act as electric power converters: a rectifier converts alternating current (AC) to direct current (DC), while an inverter converts DC to AC.
Q: What is the difference between a voltage regulator and a rectifier?
A: A rectifier converts AC voltage to DC voltage, with half-wave and full-wave rectifiers being common types. A regulator provides an output voltage lower than the input voltage. For example, a 7805 regulator outputs 5V when 12V DC is applied to its input terminals.
Q: Why do we need a rectifier in electronics?
A: Rectifiers are used in electric welding to provide polarized voltage. Half-wave rectifiers are used in mosquito repellents and as signal peak detectors in AM radios. They are also used in modulation, demodulation, and voltage multipliers.
