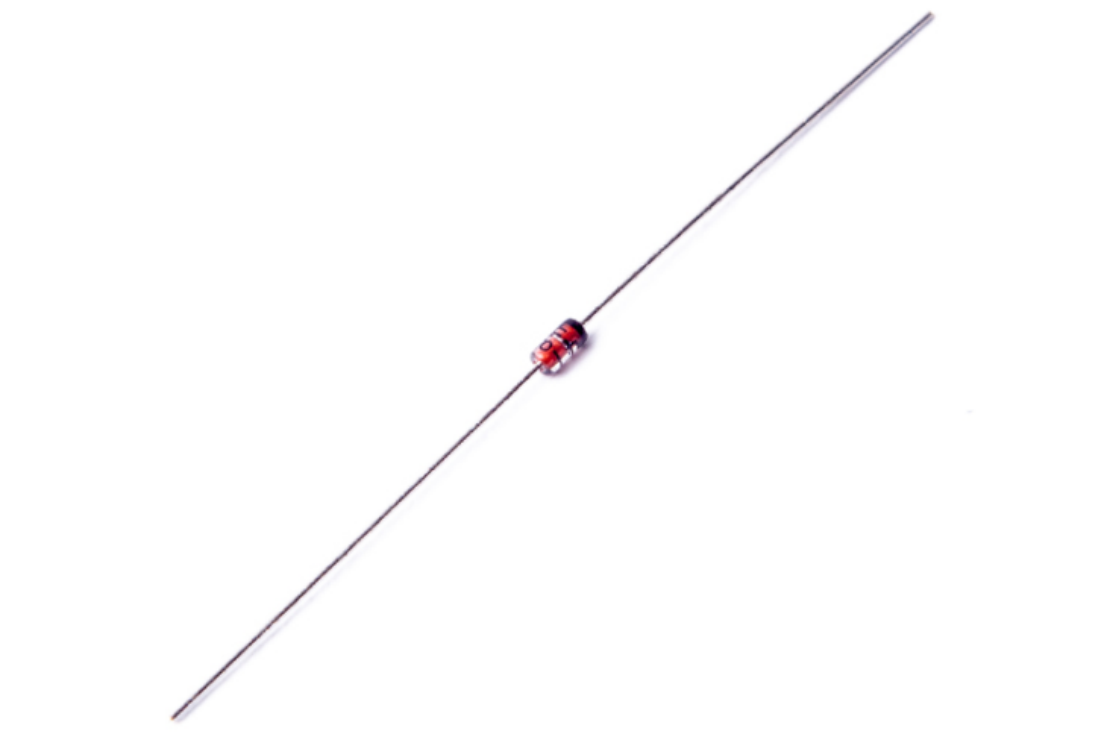

The Zener diode working principle is based on its ability to maintain a nearly constant voltage across its terminals when it is reverse-biased and operates in the Zener breakdown region. This behavior is essential for its use in voltage regulation and voltage reference applications.
Here’s how a Zener diode works:
Reverse Biasing: A Zener diode is connected in a circuit with its anode (the P-type material) connected to the morenegativevoltage and its cathode (the N-type material) connected to the morepositivevoltage. This reverse-biased configuration is the key to its operation.
Zener Voltage (Vz): Every Zener diode has a specified Zener voltage (Vz), which is the voltage at which it is designed to operate. When the reverse voltage across the diode (Vr) exceeds this Zener voltage, something special happens.
Zener Breakdown: As the reverse voltage (Vr) across the Zener diode increases, it eventually reaches a critical value equal to or greater than the Zener voltage (Vz). At this point, the Zener diode enters a state called Zener breakdown.
Avalanche Effect: Zener breakdown in low-voltage diodes occurs due to quantum tunneling, while higher-voltage Zener diodes rely on theavalanche effect. When the reverse voltage reaches or exceeds the Zener voltage, the strong electric field across the depletion region causes electrons to gain enough energy to break free from their atomic bonds. These “free” electrons collide with other electrons in the crystal lattice, creating more free electrons in a chain reaction. This results in a sudden and rapid increase in current flow.
Voltage Regulation: The Zener diode regulates the voltage across its terminals by maintaining a nearly constant voltage equal to its Zener voltage (Vz). As long as the reverse voltage remains above the Zener voltage, the diode will conduct and keep the voltage across it at Vz.
Current Control: The Zener diode also controls the current flowing through it. The current through the diode is determined by the voltage across it (Vz) and the external load resistance (Rload) connected in series. The Zener diode adjusts its internal resistance to ensure that the current remains at a level that corresponds to the Zener voltage.
Stability: The Zener diode’s operation in the Zener breakdown region is stable and highly predictable. It maintains a constant voltage (Vz) across its terminals despite variations in input voltage, temperature, or load conditions.
Power Dissipation: To prevent overheating and damage, it’s crucial to ensure that the power dissipation in the Zener diode (Pd) does not exceed its specified rating. Power dissipation is calculated as Pd = Vz × Iz, where Vz is the Zener voltage and Iz is the Zener current.
In summary, a Zener diode operates by utilizing the Zener breakdown effect to maintain a stable and constant voltage across its terminals when reverse-biased. This unique characteristic makes Zener diodes valuable for voltage regulation, voltage reference, and overvoltage protection in electronic circuits.

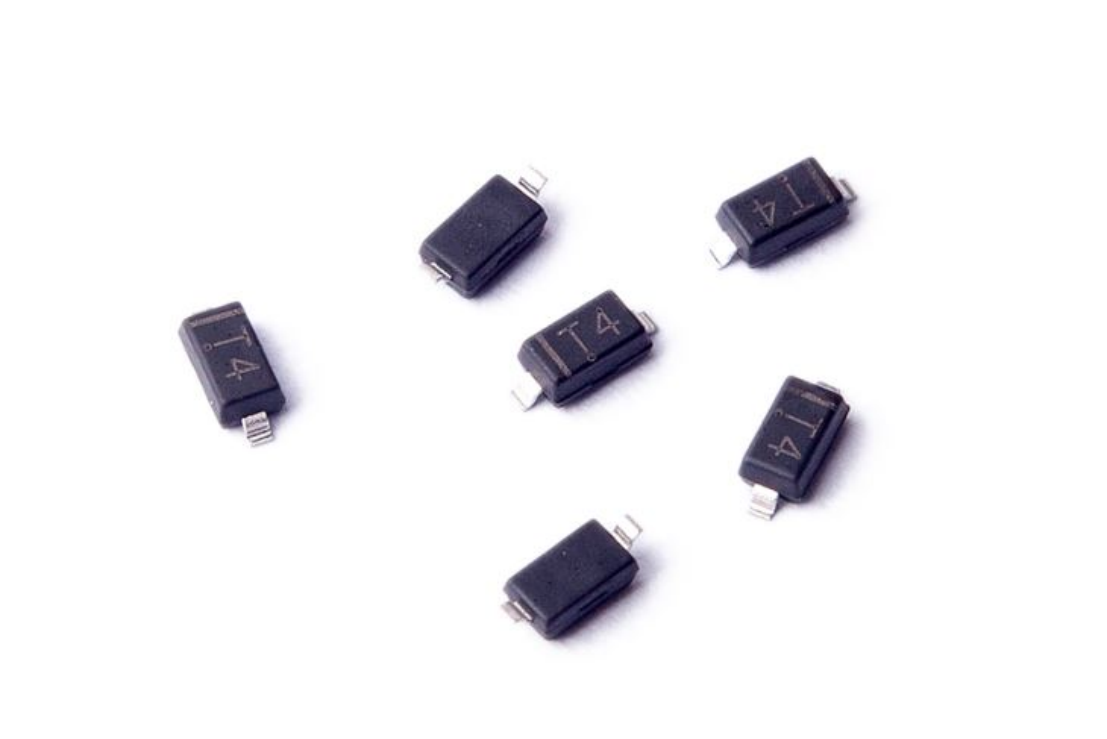

Breakdown Voltage of Zener Diode
The breakdown voltage of a Zener diode, also known as the Zener voltage (Vz), is a critical parameter specified in the diode’s datasheet. It represents the voltage at which the Zener diode begins to conduct in the reverse-biased mode and maintains a nearly constant voltage drop across its terminals.
Zener diodes are manufactured with specific Zener voltage ratings to suit various applications. Common Zener voltage ratings range from a few volts to several tens of volts, and they are chosen based on the requirements of the particular circuit.
For example, if you have a Zener diode with a specified Zener voltage of 5.1 volts, it means that when you reverse-bias the diode and apply a voltage greater than or equal to 5.1 volts across its terminals, the diode will enter the Zener breakdown region and start conducting, maintaining a voltage of approximately 5.1 volts across its terminals.
It’s important to select a Zener diode with a Zener voltage that closely matches the desired voltage regulation or reference level for your circuit, as this voltage determines the regulated output in Zener diode voltage regulation applications.

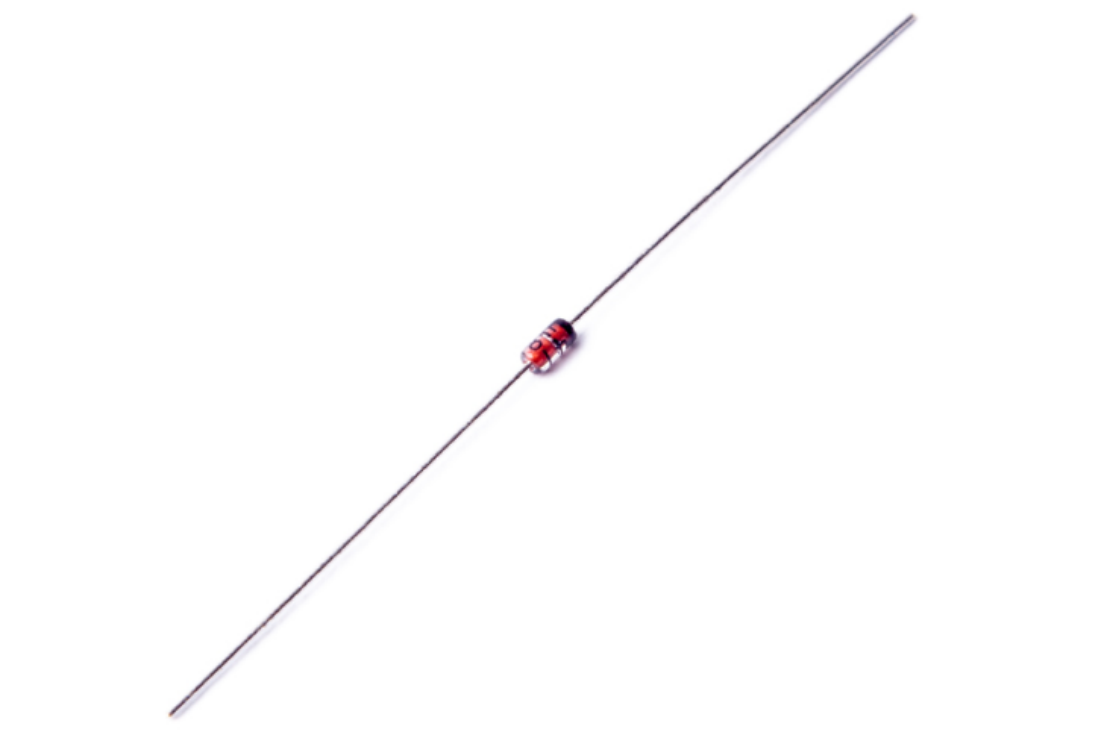

Application of Zener Diode
Zener diodes find numerous applications in electronics due to their ability to provide a stable voltage reference and regulate voltage in various situations. Here are some common applications of Zener diodes:
Voltage Regulation: Zener diodes are widely used as voltage regulators to maintain a constant output voltage, even when the input voltage or load conditions change. This is valuable in power supplies and voltage stabilization circuits.
Voltage Reference: Zener diodes are employed as precision voltage references in electronic circuits. They provide a known and stable voltage level for use in analog and digital systems, such as analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and voltage comparators.
Overvoltage Protection: Zener diodes can be used to protect sensitive electronic components from voltage spikes and overvoltage conditions. When the input voltage exceeds a certain level, the Zener diode starts conducting, effectively clamping the voltage to a safe level.
Signal Clipping: Zener diodes can be used to clip or limit the amplitude of signals in analog circuits. This is useful in audio applications and for protecting input stages of amplifiers from excessive input signals.
Voltage Level Shifting: Zener diodes can be used to shift the voltage level of a signal. By connecting a Zener diode in series with a signal source, you can create a level-shifted version of the input signal.
Temperature Compensation: Zener diodes with a specific temperature coefficient can be used for temperature compensation in circuits where the operating conditions vary with temperature. They help maintain a stable reference voltage over a wide temperature range.
Noise Generation: Zener diodes can be used to generate white noise for various applications, including testing and measurement, cryptography, and random number generation.
Current Limiting: Zener diodes can limit the current through a load or circuit by regulating the voltage across them. This can be useful in LED current limiting and protecting sensitive components.
Voltage Divider: In combination with a resistor, Zener diodes can create a voltage divider circuit to produce a specific output voltage. This can be used in sensor circuits and signal conditioning.
Battery Monitoring: Zener diodes can be used to monitor battery voltage levels and provide a low-battery indicator by comparing the battery voltage to a Zener reference voltage.
Pulse Shaping: Zener diodes can be used to shape the waveform of pulse signals by clamping the voltage at a certain level.
Switching Applications: In some cases, Zener diodes can be used in switching applications, such as voltage-controlled switches and pulse generators.

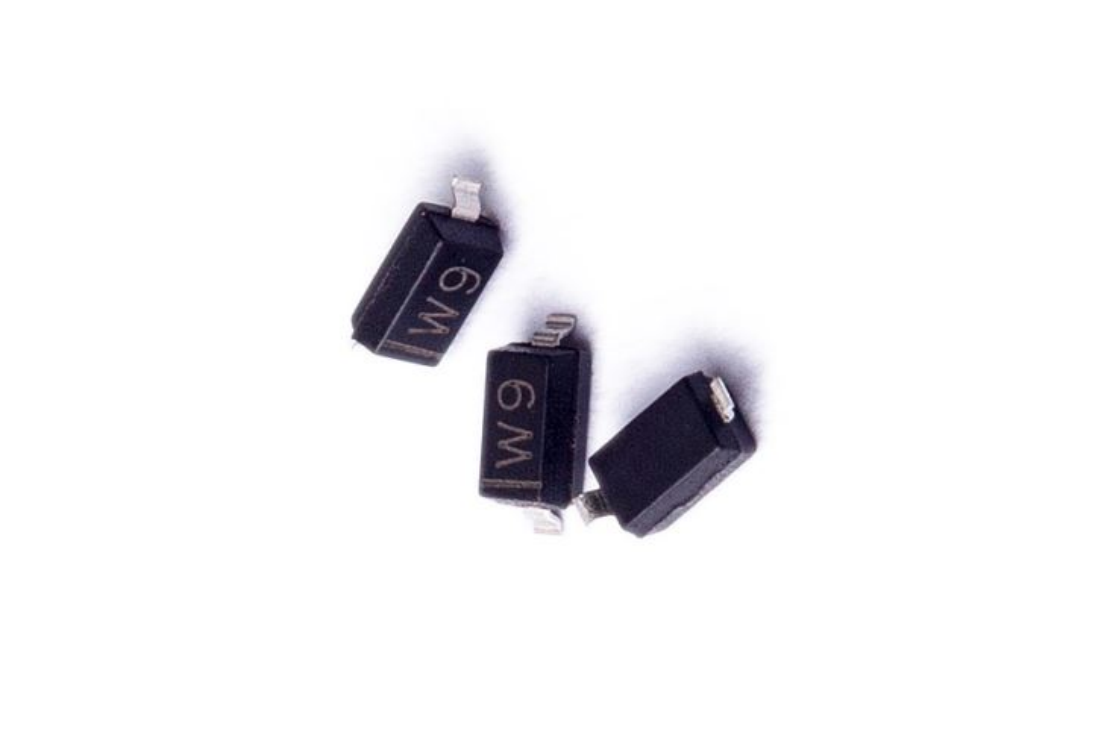

Zener Diode Characteristics
Zener diodes have several important characteristics that make them useful for various electronic applications. The characteristics of a Zener diode are:
Zener Voltage (Vz): This is the most critical characteristic of a Zener diode. It represents the voltage at which the Zener diode starts to conduct in the reverse-biased mode and maintains a nearly constant voltage drop across its terminals. The Zener voltage is specified in the diode’s datasheet and is the voltage at which the diode is designed to operate.
Zener Test Current (Iz): The Zener test current is the current at which the Zener voltage is specified in the datasheet. It is the current at which the Zener diode should be tested to measure its Zener voltage accurately.
Zener Impedance (Zz): Zener diodes exhibit dynamic resistance, often referred to as Zener impedance (Zz), in the Zener voltage region. This resistance determines how the diode responds to changes in voltage and load. Lower Zener impedance results in better voltage regulation. Zener impedance is inversely proportional to the Zener current (Iz).
Temperature Coefficient: The voltage reference provided by a Zener diode is temperature-sensitive. The Zener voltage can change with temperature, and this change is quantified by the temperature coefficient, usually expressed in mV/℃. A positive temperature coefficient means that the Zener voltage increases with temperature, while a negative coefficient means it decreases.
Reverse Leakage Current (Iz, Max): In the reverse-biased mode, a small amount of current flows through the Zener diode even before it reaches the Zener voltage. The datasheet specifies the maximum reverse leakage current (Iz, Max) to ensure that the diode operates correctly in the off state.
Power Dissipation (Pd): Zener diodes have a maximum power dissipation rating (Pd) specified in their datasheets. This rating indicates the maximum amount of power that the diode can safely handle without exceeding its temperature limits. Power dissipation is the product of the Zener current (Iz) and the voltage across the diode (Vz).
Reverse Voltage Rating (Vr): Zener diodes have a maximum reverse voltage rating (Vr) that indicates the maximum reverse voltage they can withstand without breaking down. Exceeding this rating can permanently damage the diode.
Breakdown Knee Voltage: Just before the Zener voltage region, there is a voltage point called the “knee voltage.” At this voltage level, the Zener diode starts to exhibit some breakdown characteristics but doesn’t yet maintain a stable voltage. It’s important to operate the Zener diode above this knee voltage for proper voltage regulation.
Dynamic Response: Zener diodes exhibit a dynamic response to changes in voltage and current. They respond to variations in input voltage and load conditions to maintain a relatively constant output voltage. This dynamic response is a key characteristic for voltage regulation applications.

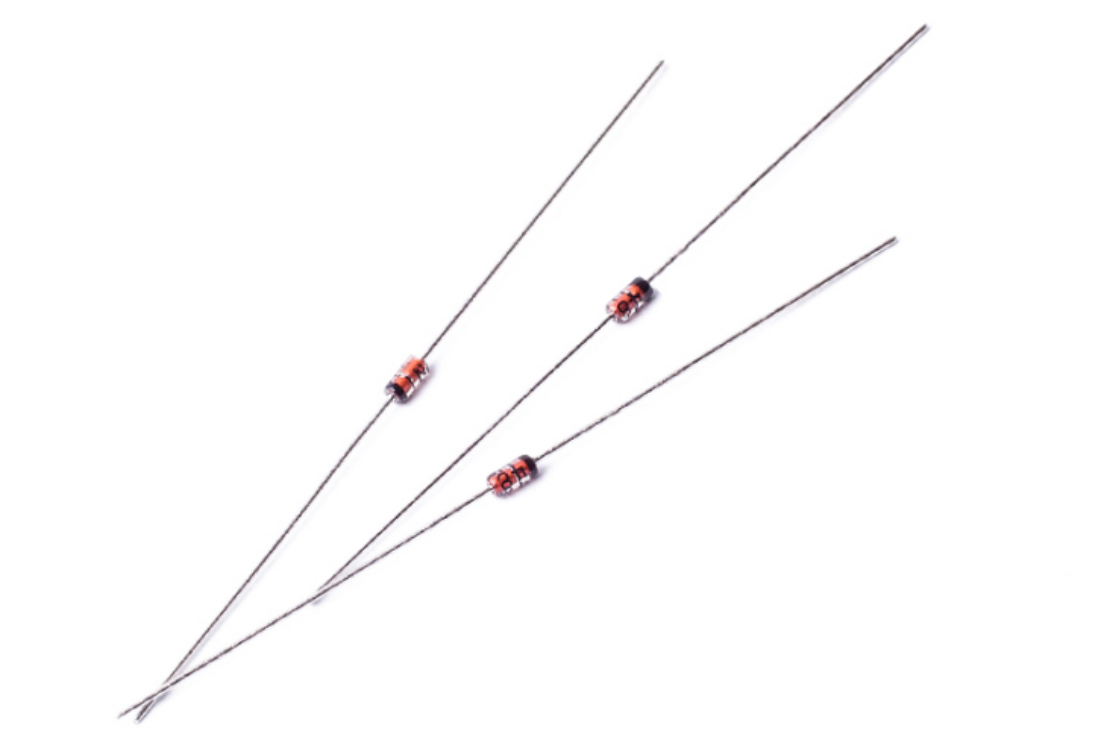

Practical Tips for Using Zener Diodes
When implementing Zener diodes in electronic circuits, consider the following practical tips for optimal performance:
Use a series resistor with the Zener diode to limit the current flow and prevent damage due to excessive power dissipation.
Choose a Zener diode with a power rating higher than the maximum power expected in the application to ensure reliable operation and prevent premature failure.
For temperature-sensitive applications, select a Zener diode with a low temperature coefficient to maintain stable voltage regulation across varying temperatures.
Consider the physical size and package type of the Zener diode, as this can impact thermal performance and heat dissipation capabilities.
In conclusion, Zener diodes are versatile electronic components with a wide range of applications in voltage regulation, voltage referencing, and voltage clamping. Understanding their characteristics, specifications, and types can help you select the appropriate Zener diode for your specific application and ensure reliable performance in your electronic circuits.

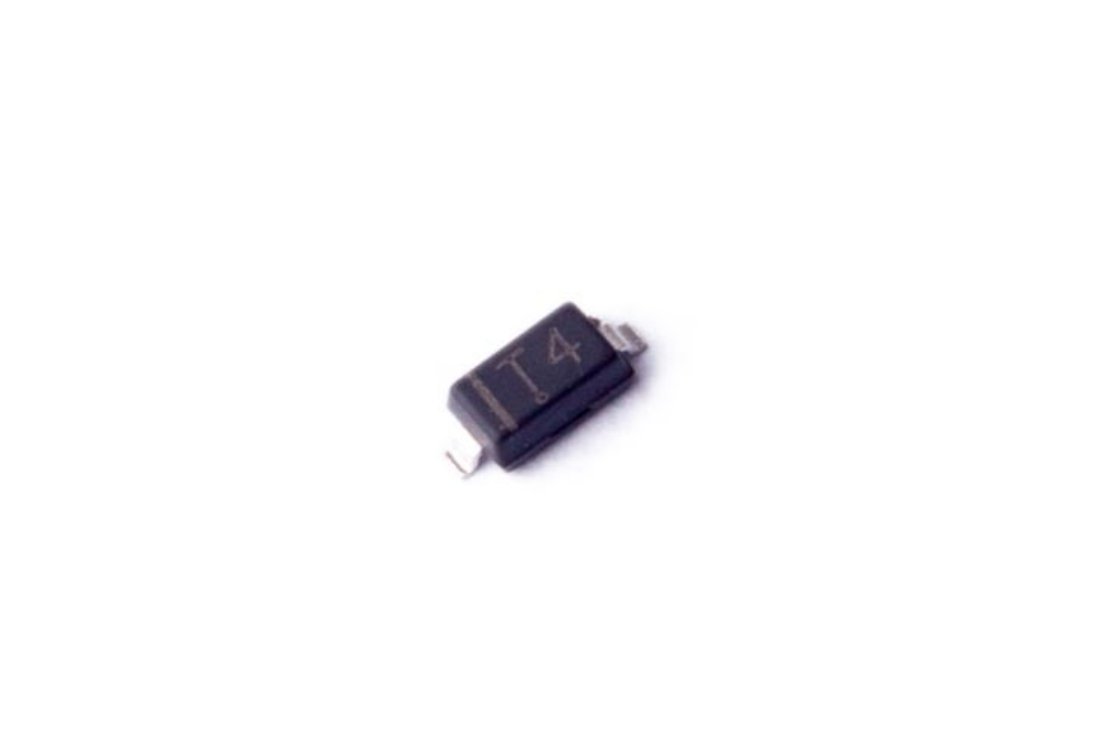

Specifications of Zener Diode
When a P-N junction diode is connected in reverse bias, there is an increase in the reverse current in the circuit due to the Zener effect. The minimum voltage at which this occurs is called the Zener breakdown voltage (Vz). Its range varies from 2.4V to 200V, and sometimes even higher (around 1kV).
Current Iz (max): The maximum current that can flow at the rated Zener voltage is200μA to 200A.
Current Iz (min): The minimum current required for the diode to break down. It is also called theknee current.
Power rating (P): The maximum power the Zener diode can dissipate is called its power rating.
Zener resistance: The opposition to current flow through the Zener diode in its operating region is called Zener resistance (Rz) or Zener impedance.
The voltage tolerance of Zener diodes is typically ±5%.
Diodes with a Zener voltage of around 5V have the best temperature stability.

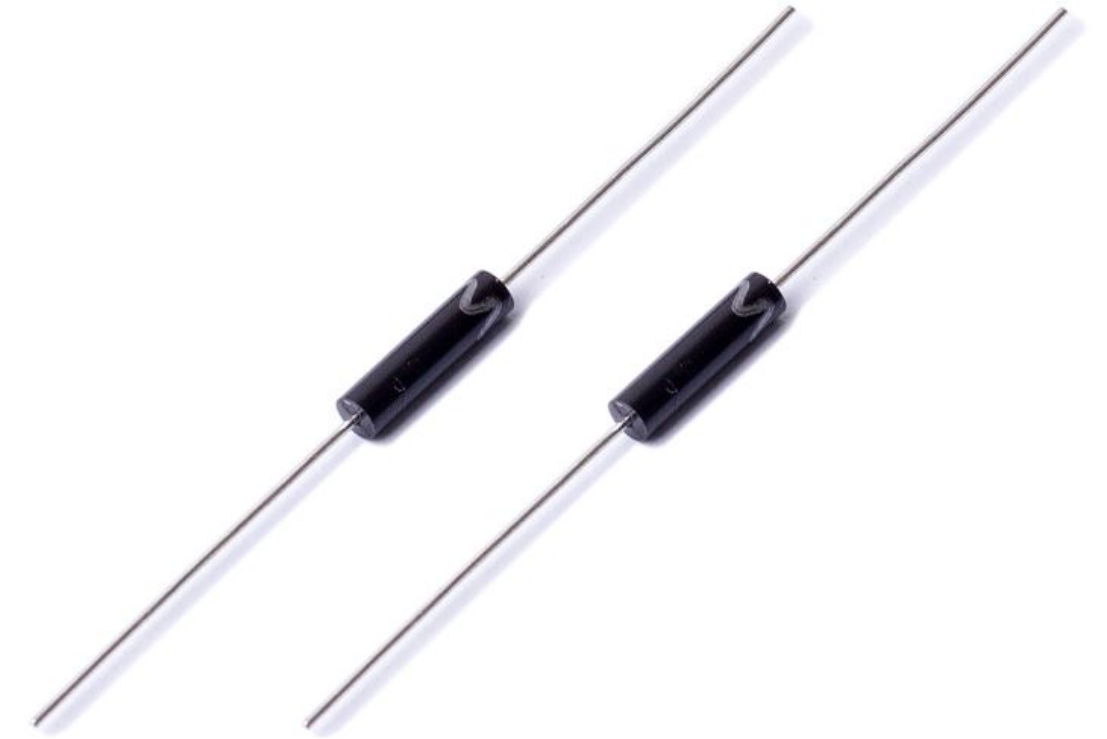

Zener Diodes Functionality
Current flowing across the terminals in reverse bias (backward) due to the Zener effect. When the voltage potential reaches the Zener voltage (Vz), this triggers the breakdown voltage. Zener diodes uniquely feature a heavily doped P-N junction that allows current to flow in reverse when Vz is reached. A well-defined Vz enables the diode to conduct current continuously in reverse bias without being damaged. The current then increases to a maximum level determined by a series resistor, stabilizes, and remains constant over a range of applied voltages. Therefore, Zener diodes are suitable for use as voltage regulators.
A Zener diode operates within the normal range of forward bias, with a turn-on voltage between 0.3V and 0.7V. When connected in reverse bias, only a small leakage current flows initially. As the reverse voltage increases to the specified Vz, current flows through the diode. The current then increases to a maximum value determined by the series resistor, and then stabilizes to remain constant over a range of applied voltages.
Zener diodes have two breakdown effects. Understanding these two effects helps in grasping their functionality. The first is the Zener effect, prevalent in diodes with voltages below 5.5V, which involves a tunneling effect to cause breakdown. The second is avalanche breakdown (or impact ionization), which occurs in diodes with voltages above 5.5V. These two breakdowns result in the same behavior and do not require different circuitry, but each has a distinct temperature coefficient. The Zener effect has a negative temperature coefficient, while avalanche breakdown has a positive temperature coefficient. At approximately 5.5V, these two temperature effects are almost equal in magnitude and cancel each other out, making Zener diodes rated at around 5.5V stable over a wide range of temperatures.
Think of a Zener diode like two diodes in parallel, facing opposite directions. In forward bias, a Zener diode has a voltage drop of 1V required to turn on and allow current to flow. This forward voltage is the forward-biased condition. Current flowing in the reverse direction is associated with the Zener voltage, which is the reverse-biased condition due to its properties. For example, a Zener diode with a Zener voltage of 3.3V requires the applied voltage to be at least this minimum value for current to flow across the diode. Having a predictable voltage drop makes Zener diodes useful not only as voltage regulators but also as devices that can limit the voltage of other components when properly configured.

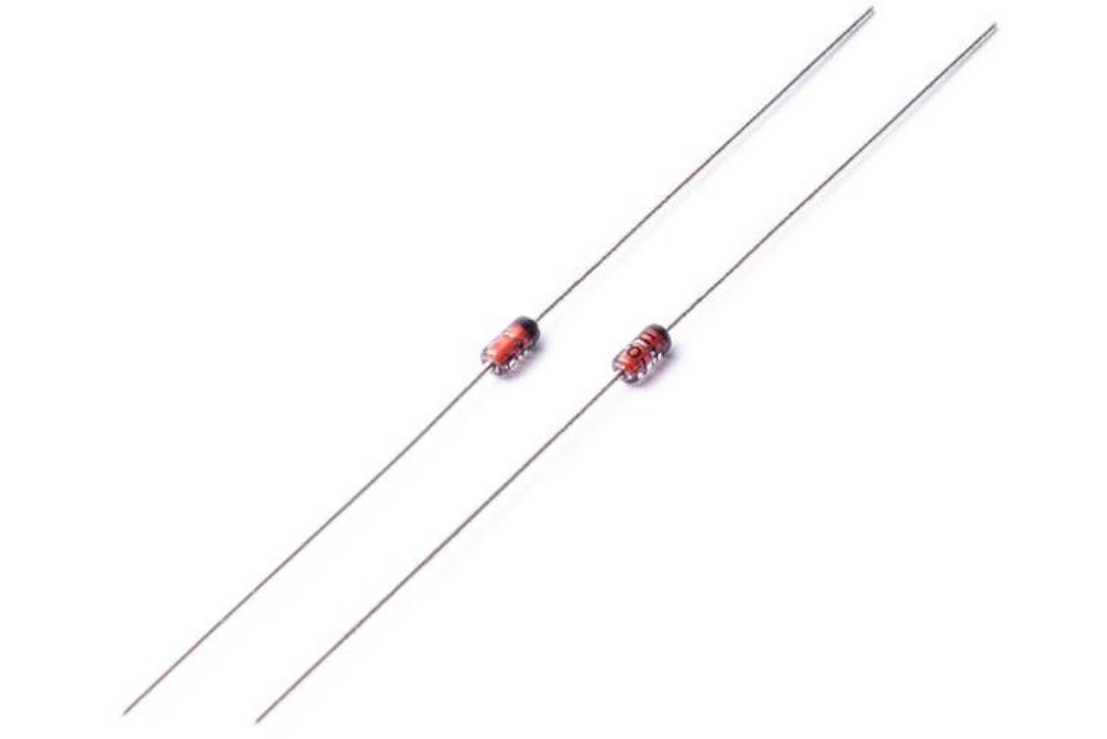

FAQ
Q: What are Zener diodes used for?
A: Zener diodes are used for voltage regulation, as reference elements, surge suppressors, in switching applications, and clipper circuits. The load voltage equals the breakdown voltage (VZ) of the diode. The series resistor limits the current through the diode and drops the excess voltage when the diode is conducting.
Q: How does a Zener diode regulate voltage?
A: When forward-biased, it behaves like a normal signal diode, but when reverse voltage is applied, the voltage remains constant over a wide range of currents. This feature makes it useful as a voltage regulator in DC circuits.
Q: How does the Zener diode principle work?
A: The working principle is as follows: if the reverse bias voltage is less than the breakdown voltage, or if it is forward-biased, it acts like an ordinary diode. This means forward bias allows current to flow, while reverse bias blocks current flow (until breakdown).
Q: What is the difference between a diode and a Zener diode?
A: The main difference is that a regular diode conducts in only one direction, while a Zener diode can conduct in both directions once a certain reverse voltage (breakdown voltage) is reached. This property makes Zener diodes useful in voltage regulation or protection applications.
Q: Why do we use Zener diodes instead of regular diodes?
A: The Zener voltage across a Zener diode remains constant over a wide range of Zener currents. Because of this property, Zener diodes are widely used as constant-voltage devices. A Zener diode permits Zener current (Iz) to flow when the applied voltage exceeds its specified Zener voltage.
Q: Where are Zener diodes used in real life?
A: Clipper circuits use Zener diodes to prevent the output signal from exceeding a determined value without altering the input signal. Zener diodes are also used in modifying and shaping AC waveforms in clipping circuits.
Q: Can I use a Zener diode to reduce voltage?
A: A Zener diode can be used with a resistor in a circuit to act as a voltage shifter. This circuit lowers the output voltage by an amount equal to the Zener diode’s breakdown voltage.
Q: Can a Zener diode increase voltage?
A: A Zener diode is often used to provide a reference voltage due to its characteristic “knee voltage.” For example, if you have a 20V DC supply and use a resistor and a 5V Zener diode in series across it, the voltage across the diode will rise to 5V but no higher.
Q: How does a Zener diode protect from overvoltage?
A: A 5.1V Zener diode blocks reverse current flow up to 5.1V. If the voltage across the Zener diode exceeds 5.1V, it allows current to pass through. This function makes it an excellent overvoltage protection component.
Q: What is a Zener diode in simple terms?
A: Zener diodes are semiconductor devices that allow current to flow in both directions but are specialized for reverse current flow. Also known as breakdown diodes, they are the most common electronic components used as stable voltage references in circuits.
Q: What is a Zener diode and what are its advantages?
A: A Zener diode is a semiconductor device that allows current to flow in both forward and reverse directions. It typically consists of a heavily doped p-n junction designed to conduct reverse current once a specified voltage is reached. Its advantages include stable voltage regulation, simplicity in circuit design, and reliable overvoltage protection.
Q: How does a Zener diode protect a circuit?
A: The Zener diode addresses concerns about the breakdown region by allowing reverse current flow once the minimum reverse voltage (Zener voltage) is reached. Its construction can safely withstand a wide range of operating currents, making it effective for circuit protection.
Q: Can I use a Zener diode instead of a normal diode?
A: If the reverse voltage does not exceed the rated Zener breakdown voltage, a Zener diode will act like a regular diode. However, to carry the forward current of a diode like the 1N4004 (1A), the Zener diode must be rated for 1W or higher.
Q: Why is it called a Zener diode?
A: The device is named after American physicist Clarence Zener, who described the breakdown property of electrical insulators. It consists of a reverse-biased, highly doped p-n junction diode operating in the breakdown region.
Q: What is the maximum voltage of a 5V Zener diode?
A: A 5V Zener diode is used to regulate voltage across a load resistor (RL), with the input voltage varying between 10V and 15V. The load current also varies from 5mA to 50mA.
Q: What is another name for a Zener diode?
A: At the knee point, the diode allows reverse current flow due to the Zener effect. For this reason, “breakdown diode” is another name for a Zener diode.
Q: Where is a Zener diode used as a voltage regulator?
A: Zener diodes are used as voltage regulators in power supplies, battery chargers, and electronic circuits where a stable voltage is required. Diodes in general can also be used as rectifiers, signal limiters, switches, modulators, mixers, demodulators, and oscillators, with their key property being one-way current conduction.
Q: What happens when a Zener diode is forward biased?
A: When forward-biased, a Zener diode behaves like a normal signal diode, with current increasing linearly with voltage. However, once the reverse voltage applied across it reaches the breakdown voltage, a large current starts to flow through the diode.
Q: What destroys a Zener diode?
A: Zener diodes have a maximum power dissipation rating (Pz), which is the maximum power they can dissipate without exceeding their maximum junction temperature. Exceeding this rating can lead to thermal runaway, where the diode’s temperature and current increase exponentially, destroying the diode.
Q: How much power can a Zener diode handle?
A: Zener voltage (reverse breakdown voltage) ranges from 2.4V to 200V, depending on the diode. The maximum current at the rated Zener voltage can range from 200μA to 200A.
